Comarch CardioNow

Comarch CardioNow and accompanying software provide a comprehensive solution to enable a new kind of telemedicine services at your facility. Three modes of operation let you choose the service model that best suits your needs.

What makes us different?

Three modes of operation in one unit
Electronic patient log
Auto-detection of ECG events
Transmission of events detected by algorithms

One device – three operating models

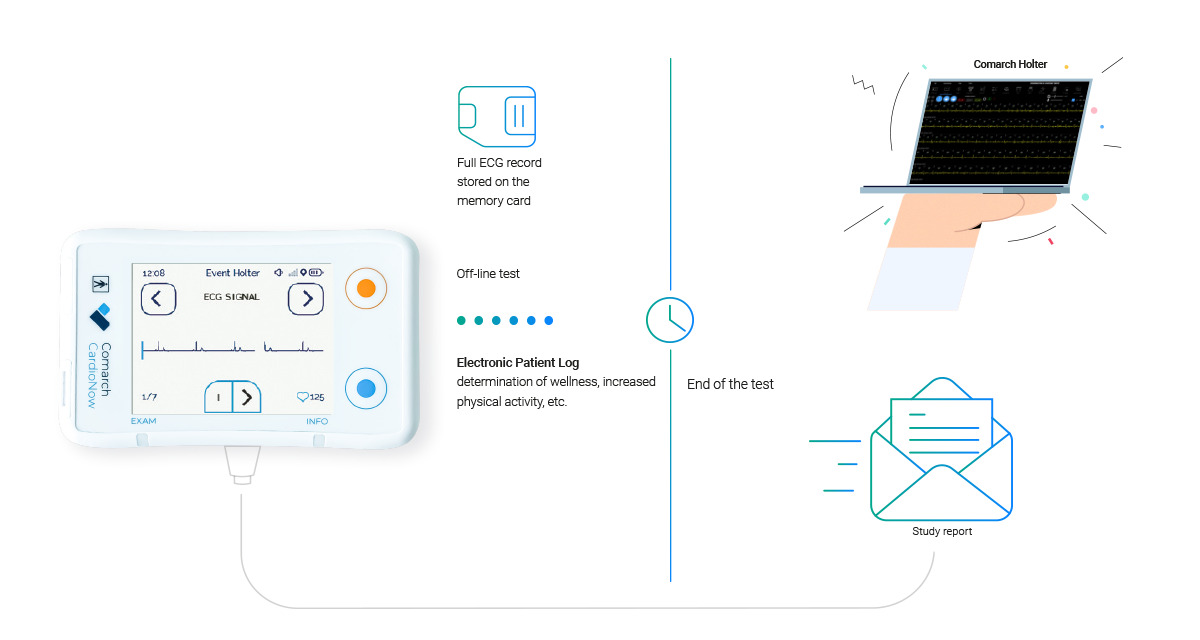

Holter test mode allows you to save all of the ECG record to the memory card of the device. It is performed off-line. The ECG signal is analyzed only after the complete test is finished in the Comarch Holter application. During the test, the patient has the ability to mark activity (such as stress and emotions) in a diary. Medical staff see the flags of these activities during signal analysis. At the end of the study, the patient receives a report with the results of the analysis.

During an Event Holter mode test, the device analyzes the recorded data and detects defined cardiac events through built-in automatic analysis algorithms. The test allows you to transmit ECG events that are detected by the device and events reported by the patient with the associated signal fragment on the Comarch e-Care 2.0 platform for further analysis by medical personnel. Personnel may contact the patient during the test if an abnormality is detected.

The test in this mode is a combination of the two previous modes, Holter and Event Holter. A Tele Holter test saves all of the ECG records to the memory card of the device. At the same time, the device analyzes the acquired data and detects defined cardiac events through built-in automatic analysis algorithms. Detected events and associated ECG signal fragments are sent to the Telemedicine platform - Comarch e-Care 2.0. Once the test is complete, medical staff can analyze the entire ECG signal in the Comarch Holter viewer, and generate a report for the patient.

ECG Recorder - Comarch CardioNow

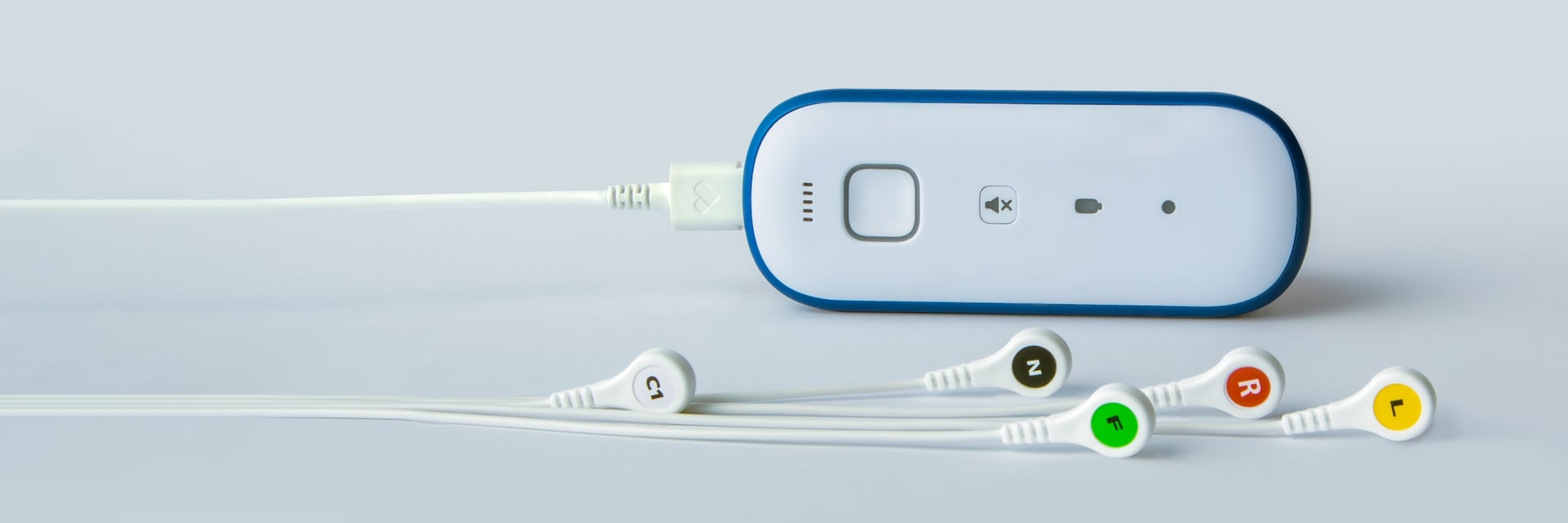

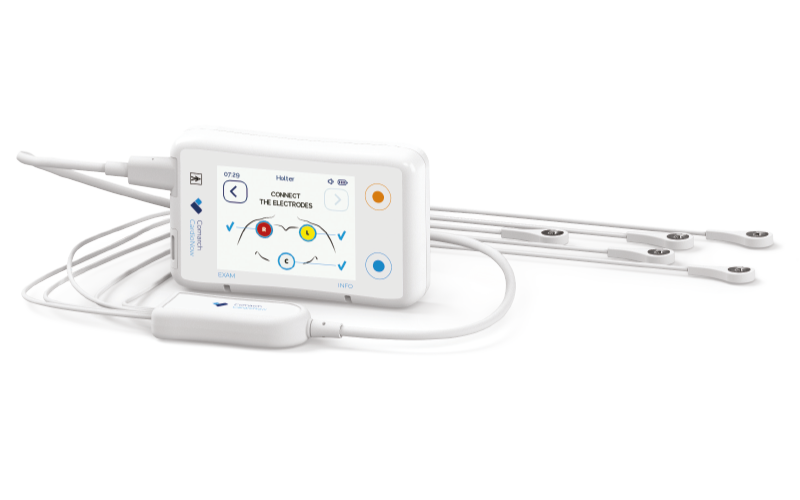

The Comarch CardioNow product is a Holter-type ECG recorder designed for surface recording of electrical activity of the heart muscle (ECG). Telemedicine functions make the device ideal for use in remote medical care. The Comarch CardioNow device is intended for use by patients with cardiac conditions and for prophylactic purposes.

Device functionality:

Three acquisition channels allow you to acquire a 7-lead ECG signal (I, II, III, V1, aVR, aVL, aVF)
Automatic analysis algorithms
Removable Battery Module that allows continuity of testing
Detection of the electrodes and the ECG module being unclipped
Transmission of events detected by algorithms
Patient button
Electronic patient log
Easy-to-read interface and step-by-step instructions for the user
Low-battery alert

Comarch e-Care 2.0 Telemedicine Platform

Event management of the Comarch CardioNow recorder
ECG signal presentation
View of a list of historical measurements
Manual configuration of test parameters
Patient management
Web access
Comarch ECG Viewer
- presentation of the ECG signal
- changing the arrangement of the lead presentation
- navigator enabling quick viewing of the record
- measuring tools

Comarch Holter Software

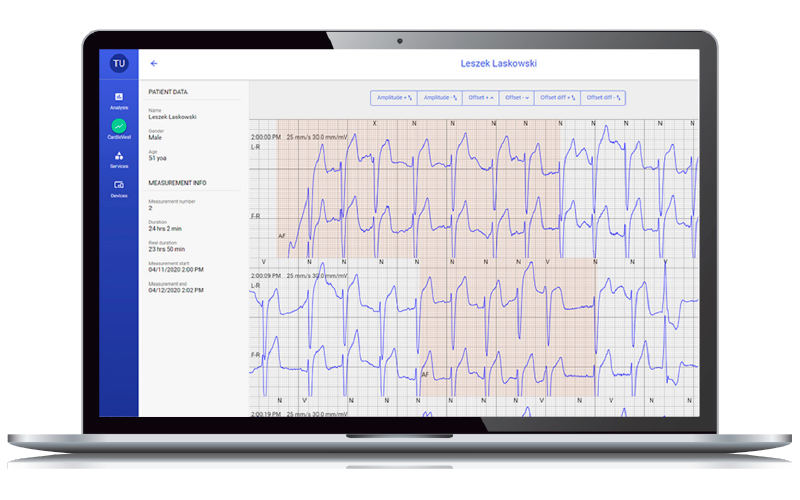

Comarch Holter is a web-based desktop application designed for PC-class computers. The application can be operated by anyone with the necessary medical knowledge to perform Holter analysis (physicians, paramedics, and ECG technicians). Supports cardiac diagnosis by automatically analyzing the ECG signal.

Functionality:

Load and view the ECG signal
Auto ECG signal analysis
Presentation of the results of automatic analysis
Generation of a report with analysis results

ECG Recorder - Comarch CardioNow

Device functionality:

Three acquisition channels allow you to acquire a 7-lead ECG signal (I, II, III, V1, aVR, aVL, aVF)
Automatic analysis algorithms
Removable Battery Module that allows continuity of testing
Detection of the electrodes and the ECG module being unclipped
Transmission of events detected by algorithms
Patient button
Electronic patient log
Easy-to-read interface and step-by-step instructions for the user
Low-battery alert

Comarch e-Care 2.0 Telemedicine Platform

Event management of the Comarch CardioNow recorder
ECG signal presentation
View of a list of historical measurements
Manual configuration of test parameters
Patient management
Web access
Comarch ECG Viewer
- presentation of the ECG signal
- changing the arrangement of the lead presentation
- navigator enabling quick viewing of the record
- measuring tools

Comarch Holter Software

Functionality:

Load and view the ECG signal
Auto ECG signal analysis
Presentation of the results of automatic analysis
Generation of a report with analysis results

Comarch Healthcare S.A. has an implemented and certified ISO 13485 medical device quality management system.

The Comarch e-Care 2.0 platform, the Comarch Holter application, and the Comarch CardioNow device are medical devices certified to comply with Regulation UE 2017/745 (MDR).

Benefits of using Comarch CardioNow

Diagnosing cardiac arrhythmias
Ability to continue treatment in the home environment
Increased sense of safety through quick and easy contact with medical staff
Detection of cardiac arrhythmias with automatic notification to medical staff
Reduction of the response time to life and health threats
Comfort and convenience

Reduction of hospitalization time and costs resulting from extended hospital stays
Ability to observe the patient’s health and follow medical recommendations outside of the hospital
Relief for medical staff
Increased treatment efficiency
Rapid access to patient medical data
Improvement of reputation and image of the healthcare facility
